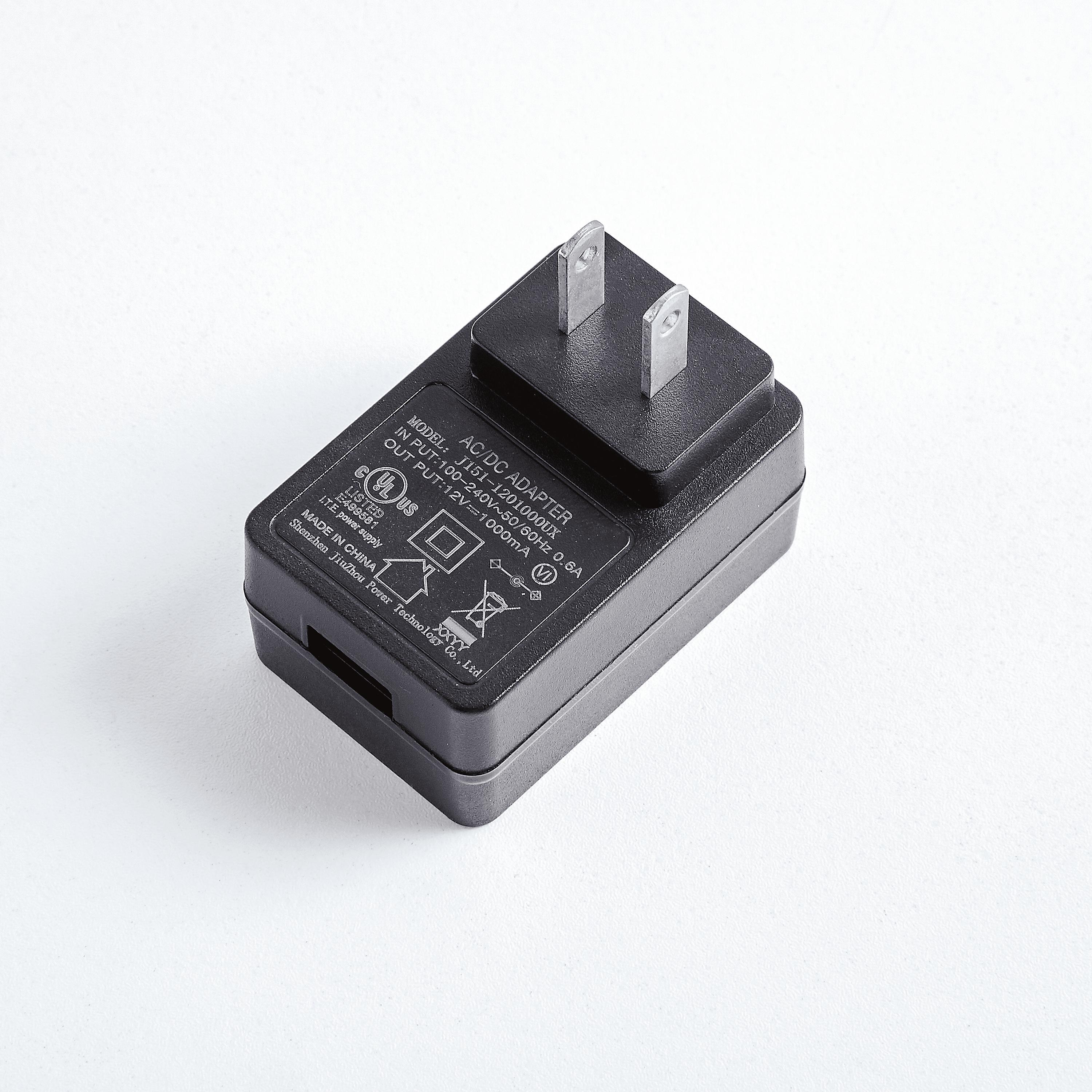

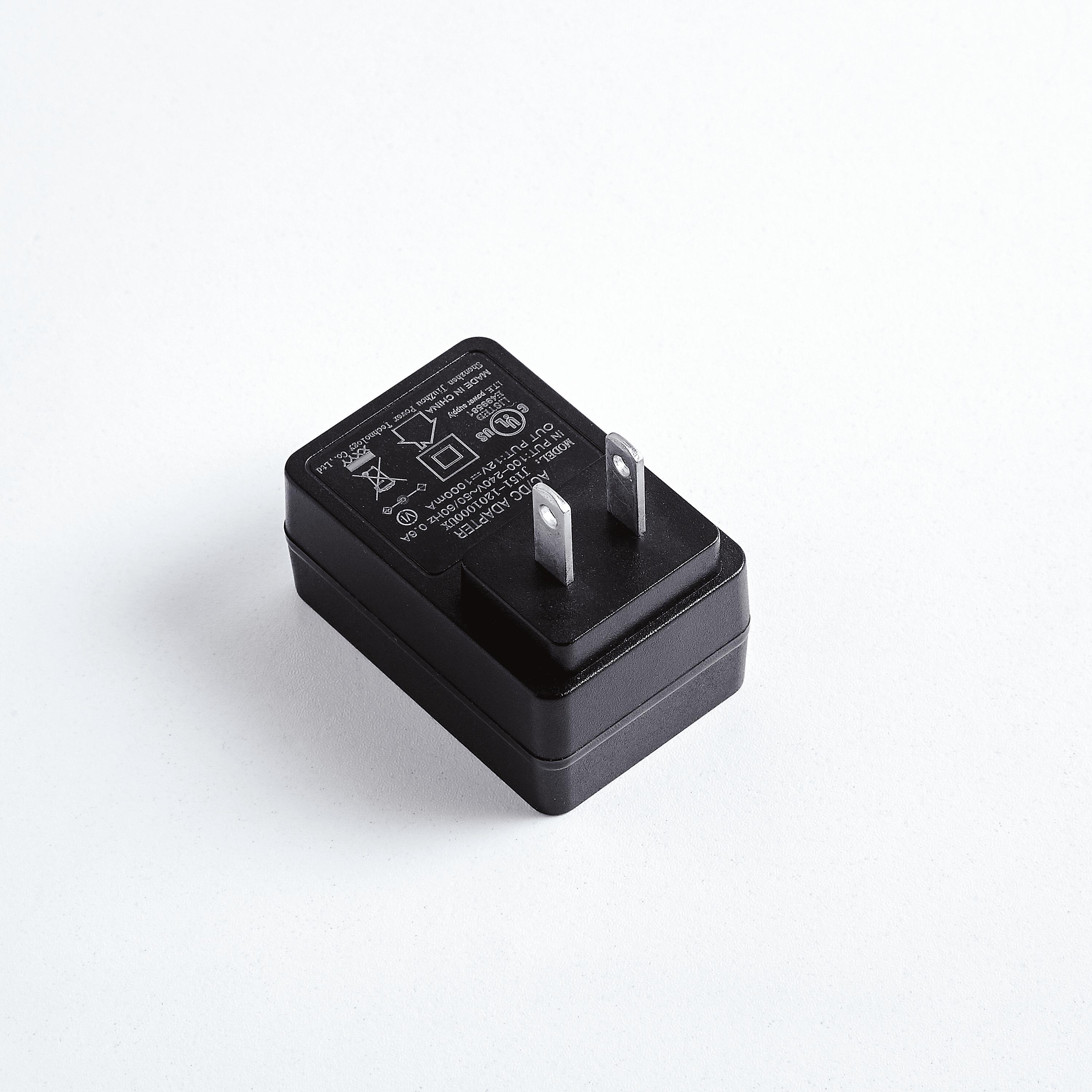

J151-USB电源适配器
12v1aUSB电源适配器印度规BIS认证充电器厂家-玖洲宝
- 型号：JZB151-090100TU
- 输出：9v1000ma 1500ma 2000ma
- 认证：KC UL CE FCC PSE GS
- 尺寸：L58.2x W38.7x H26mm
- Product description: 12V1a适配器充电器印度规BIS认证可定制充电器，9v2a电源适配器生产厂家玖洲宝科技有限公司
产品描述:
9V1aUSB电源适配器印度规BIS认证充电器适配器厂家：深圳市玖洲宝科技有限公司
| 产品名称： |
JZB151-1201000TU JZB151-1201500CU JZB151-9002000CU |
| 输入电压： | 100V-240V 50/60HZ |
| 输出电压： | 9v 1a 1.5a 2a |
| 输出方式： |
DC输出接口 DC:3.5*1.35*10mm DC：5.5*2.1*10mm DC:5.5*2.5*10mm |
| 高压测试： | 3000V AC |
| 外壳尺寸 | L58.2x W38.7x H26mm |
| 老化负载： | 输入220V 满负载老化2小时 |
| 颜 色： | 黑色 白色 可定制 |
| 支持安规认 证： |
IEC62368音视频标准 IEC61558小家电标准 CCC CE GS FCC UL KC PSE SAA |
| J151 | 12V1A/9V2A/5V3A/24V0.5A | 中规 | 3C CQC | 5V/9V/8.4V/12V/12.6V/16.8V/24V/25.2V | 650ma | J151-2520650CU |
| J151 | 12V1A/9V2A/5V3A/24V0.5A | 美规 | UL | 1000ma | J151-1681000UU | |
| J151 | 12V1A/9V2A/5V3A/24V0.5A | 欧规 | CE | 2000ma | J151-0902000EU | |
| J151 | 12V1A/9V2A/5V3A/24V0.5A | 日规 | PSE | 3000ma | J151-0503000JU | |
| J151 | 12V1A/9V2A/5V3A/24V0.5A | 英规 | UKCA | 1500ma | J151-0915000BU | |
| J151 | 12V1A/9V2A/5V3A/24V0.5A | 澳规 | SAA | 500ma | J151-2400500SU | |
| J151 | 12V1A/9V2A/5V3A/24V0.5A | 韩规 | KC KCC | 2000ma | J151-1260650KU | |
| J151 | 12V1A/9V2A/5V3A/24V0.5A | 印度规 | BIS | 2000ma | J151-0840200TU | |
| J151 | 12V1A/9V2A/5V3A/24V0.5A | 台湾规 | BSMI | 2000ma | J151-0502000MU |
产品尺寸图
输入特性/INPUT CHARACTERISTICS:
2.1输入电压/Input Voltage:
额定电压/Rated Voltage: 100-240 Vac
调整范围/Variation Range: 90-264 Vac
2.2输入频率/Input Frequency:
额定频率/ Rated Frequency: 50-60 Hz.
调整频率/Variation Frequency: 47-63 Hz
2.3输入电流/Input Current:
当输入交流电压为额定值的下限电压负载满载时,最大输入交流电流 0.35 A.
0.35 Amps max At any input voltage and rated, DC output rated load.
2.4浪涌电流/Inrush Current:
冲击电流峰值在额定电压输入，冷启动（25℃）时，不大于 30A ;且在任何负载和输入条件下，不导致永久性损坏或危险.
Impact current peak in the rated voltage input, cold start (25 ℃), not more than 30 A; And in any load and input conditions, don't cause permanent damage or dangerous.
2.5 AC漏电流/Ac Leakage Current:
当输入电压240Vac时,最大漏电流为0.25mA./ 0.25mA Max.At240Vac input.
2.6 Stand-by power consumption ≤ 0.1 Watts.
待机功耗≤ 0.1 W.
